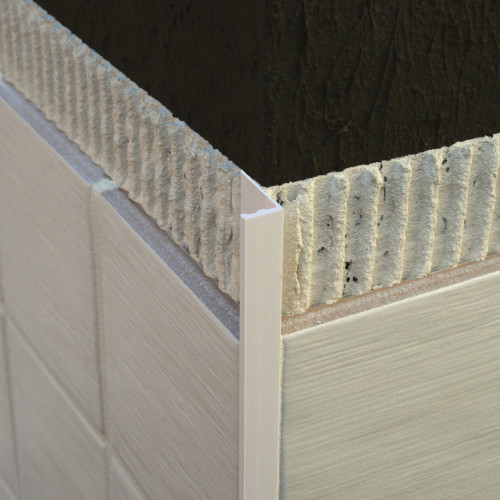

ESP - P.V.C. Straight Edge Trim

A straight edge alternative to the popular round edge profiles. In addition to being used with standard ceramic tiles the ESP can be used with rectified or square cut tiles. The profile is available in 8, 10, 12 and 15mm depths. The ESP can also be used as a capping on the horizontal where skirting tiles have been fitted or where walls are not fully tiled.

Height (mm) 6,8,10,12,15
Length (m) 2.5
Quantity / Box 60
ESP Datasheet ESP Datasheet
ESP Colour Chart ESP Colour Chart
ESP Fiche technique ESP Fiche technique
  1. Check the exact position of the trim required relative to the tiles to be laid.
  2. Bed trim into normal tile adhesive ensuring adhesive penetrates the holes in the flange. There are 5mm holes available for mechanical fixing if additional securing is needed.
  3. Spread the adhesive over the flange and firmly bed in tiles butting against the profile.
  4. A grout gap is not necessary, however, if a gap is visible ensure grout is compressed firmly into the gap.
