PUA End U

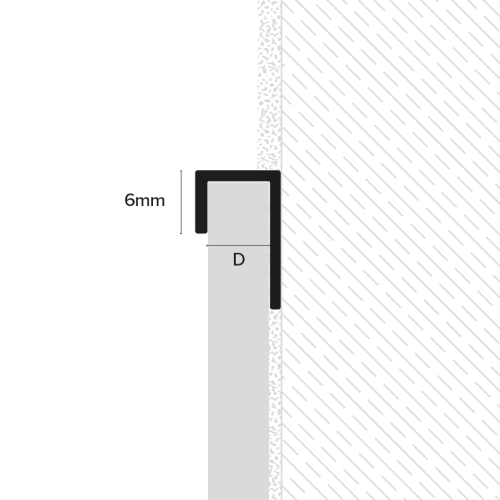

The Genesis PUA End U is an aluminium profile that is used to finish the end of a panel.

Available in bespoke powder coating to any RAL number on request.



Product
Length (m) 2.4
Box Quantity 50
Depth (mm) 11.5
Title
PUA Datasheet PUA Datasheet
  1. Start the panelling in the corner furthest from the door and panel in both directions.
  2. Fix an external corner trim in position, ensuring this is plumb. Apply a silicone sealant to the groove of the trim and adhesive to the battens or substrate.
  3. Insert the first panel into the grove of the trim, you will first need to remove the smaller tongue.Continue to fix panels away from the corner, ensuring to seal all joints with a sealant. Allow 3mm expansion gaps within the trims.
  4. Continue the panelling as required, using the necessary trims.
