NSL01 - TS

The NSL Profile comprises of an aluminium channel with a choice of insert finishes designed to meet  the guidance in Approved Document M and BS8300:2009+A1:2010. It is a straight edge, single channel profile and is ideal for use with resilient flooring.

The profile is supplied Mill finish as standard, other anodised and powder coated options can be made available.

Designed to meet the guidelines in BS8300:2009+A1:2010.

External grade Tredsafe® Insert.

Tredsafe insert is manufactured from a special blend of P.V.C., silica quartz and polymeric plasticiser giving an homogeneous hard wearing anti-slip flooring for wet and dry conditions.  The three dimensional pyramid pattern which provides excellent slip resistance in both wet and dry conditions.
Product

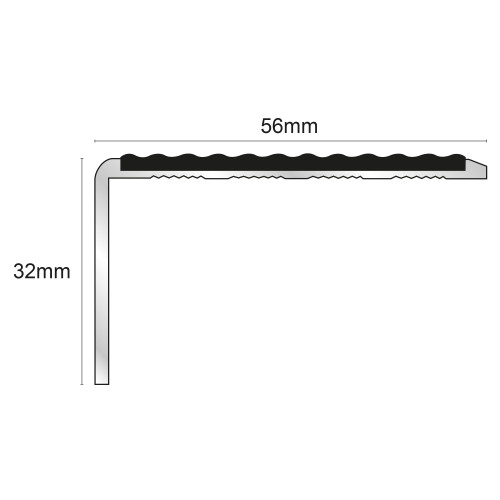

W x D (mm) 56 x 32
Channel Single
Type Slimline
Design Straight
Gauge 3mm
Lengths (m) 2.46 - 2.77 - 3.22
Material Aluminium
Box Quantity 20
Title
Insert Colours Insert Colours
Nosing Tech Pack Nosing Tech Pack
NSL01 Drawing NSL01 Drawing
Nosing User Guide Nosing User Guide
NSL Datasheet NSL Datasheet
  1. Ensure the steps are dry, clean, free of debris, level and even.
  2. If Predrilled use the drill holes to mark steps for drilling location.
  3. Drill and Plug the steps.
  4. Apply suitable adhesive to the underside of the nosing and apply nosing to the step.
  5. Screw down the step with the appropriate size screws.
  6. Apply insert (if separate) or insertpip to cover the screw head.
