ASL03



 In addition to the function of step edge protection the Aluminator® range offers an easy, energy efficient solution to illuminate steps. Should a local or emergency power failure occur on stairways, increasing the risk of hazard for evacuees, the Aluminator® system allows the evacuee to orientate, locate stair edges and risers, and to assist in the safe evacuation of the premises. The system requires no electrical connection, is simple to install and requires no special maintenance other than that which you would normally carry out on any similar product. Only normal illumination, daylight, fluorescent or standard tungsten filaments are required to activate its performance. The highly durable and slip resistant silicone carbide is suitable for external use, ideal for both commercial and domestic applications where public safety is paramount.

The diverse range can be used on a wide variety of substrates such as concrete, timber, tiles, vinyl, steel and checker plate with inserts available in a wide array of colours promoting the visibility while complimenting the aesthetics.

Product

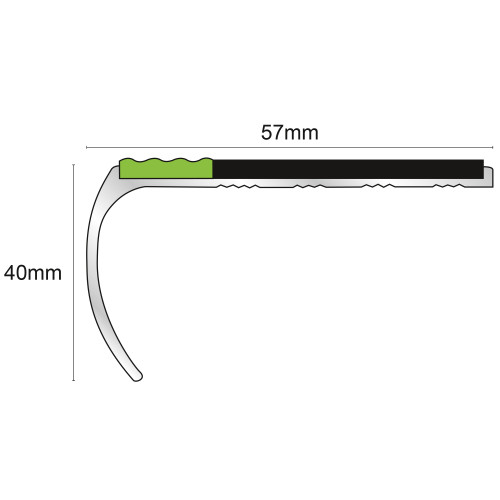

W x D (mm) 57 x 40
Channel Single
Length (m) 2.46, 2.77, 3.22
Type Slimline
Design Bullnose
Gauge (mm) 5
Material Aluminium
Box Quantity 20
Title
Nosing Tech Pack Nosing Tech Pack
Nosing User Guide Nosing User Guide
Insert Colours Insert Colours
ASL Datasheet ASL Datasheet
  1. Ensure the steps are dry, clean, free of debris, level and even.
  2. If pre-drilled use the drill holes to mark steps for drilling location.
  3. Drill and Plug the steps.
  4. Apply suitable adhesive to the underside of the nosing and apply nosing to the step.
  5. Screw down the step with the appropriate size screws.
  6. Apply insert (if separate) or insert pip to cover the screw head.
