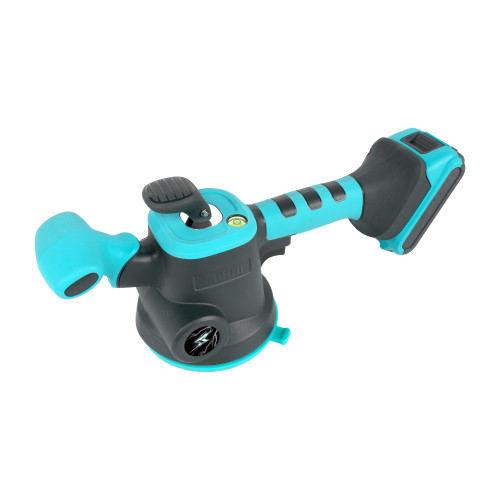

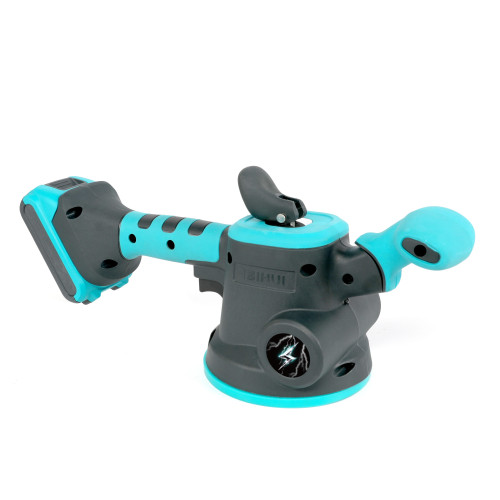

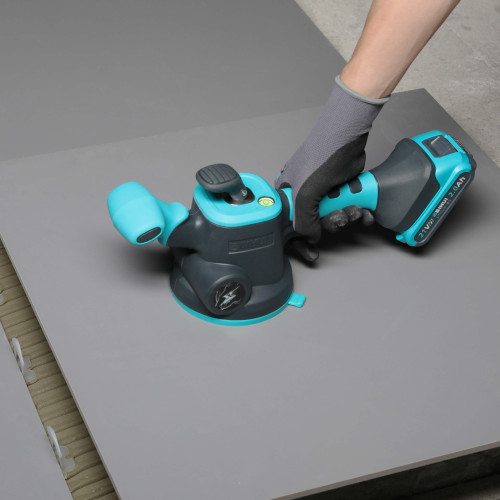

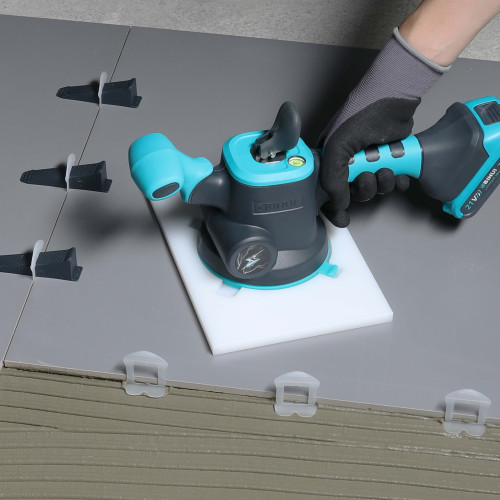

BIHUI - Vibration Tile Beater

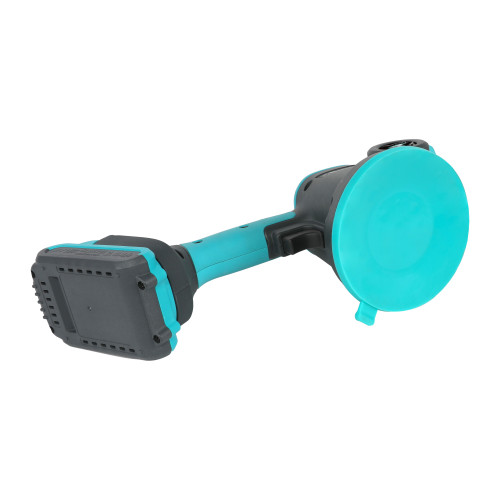

- The tool features a powerful suction cup rated to lift around 35 kg (77 lbs), allowing installers to manipulate heavy tiles with ease and precision.

- It offers continuously variable speed control (0 to ~10,000 RPM) to help optimise the vibration for different tile thicknesses or adhesives—minimising voids or air pockets under large-format slabs.

- Comfortable handling is improved through an anti-vibration auxiliary handle and a TPR (thermoplastic rubber) grip, which help reduce operator fatigue during longer shifts.

- Built-in practical aids include a spirit level bubble to help ensure tile alignment and a strong clamp to secure the tile during vibration.

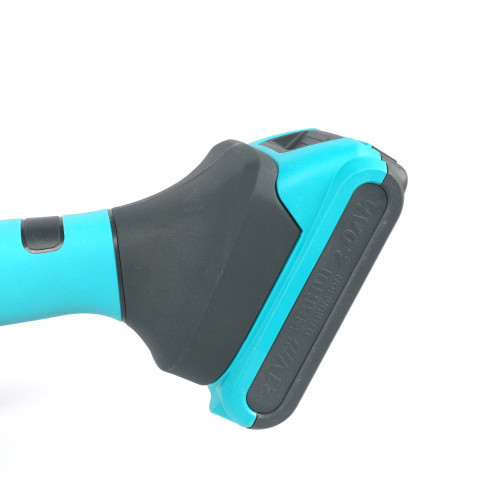

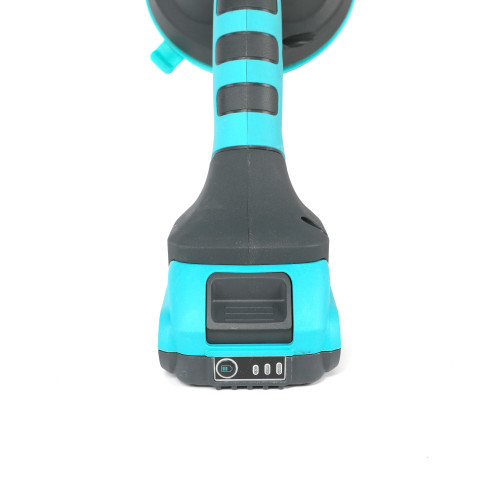

- It is powered by a BIHUI lithium-ion battery, which allows cordless operation.


Vibration Emission Value (ah)

For main handle: a=82 m/s2
For auxiliary handle: a=74.4 m/s2


Specification

Working Voltage: 21v

Battery Capacity: 2000mAh
Charging Current: 1.5A
Adsorption Capacity: 45kg
Vibration Frequency: 10,000r/min
Charging Time: 3hrs
Product Size(without battery): 352 x 134 x 165mm
Suction Cup Diameter: 134mm
Weight(without battery): 1.15KG
