AHD33
The AHD Profile is designed to be used in most commercial and industrial applications with a coloured PVC insert.
It is available in a 5mm gauge allowing for fixing with carpet or similar floor covering. The profile is available in a range of designs with DDA and building regulations accounted for.
Designed to meet the guidelines in BS8300:2009+A1:2010.
In addition to the function of step edge protection the Aluminator® range offers an easy, energy efficient solution to illuminate steps. Should a local or emergency power failure occur on stairways, increasing the risk of hazard for evacuees, the Aluminator® system allows the evacuee to orientate, locate stair edges and risers, and to assist in the safe evacuation of the premises.
The system requires no electrical connection, is simple to install and requires no special maintenance other than that which you would normally carry out on any similar product. Only normal illumination, daylight, fluorescent or standard tungsten filaments are required to activate its performance.
External grade Tredsafe® Insert.
Tredsafe insert is manufactured from a special blend of P.V.C., silica quartz and polymeric plasticiser giving an homogeneous hard wearing anti-slip flooring for wet and dry conditions.
The three dimensional pyramid pattern which provides excellent slip resistance in both wet and dry conditions.
| Product | |

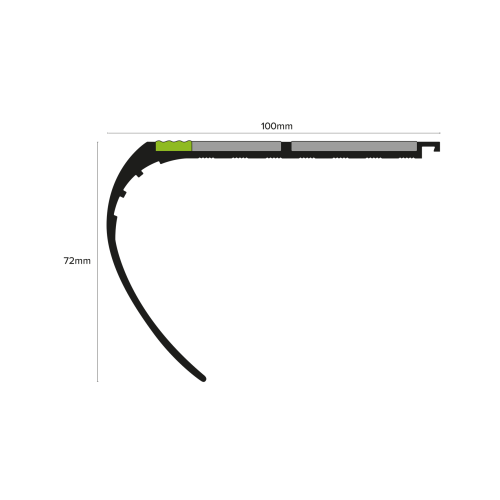

| W x D (mm) | 100 x 72 |
| Length (m) | 2.46, 2.77, 3.22 |
| Material | Aluminium |
| Title | |
|---|---|
| AHD Datasheet | AHD Datasheet |
1. Ensure the steps are dry, clean, free of debris, level and even.
2. If pre-drilled use the drill holes to mark steps for drilling location.
3. Drill and Plug the steps.
4. Apply suitable adhesive to the underside of the nosing and apply nosing to the step.
5. Screw down the step with the appropriate size screws.
6. Apply insert (if separate) or insert pip to cover the screw head.
